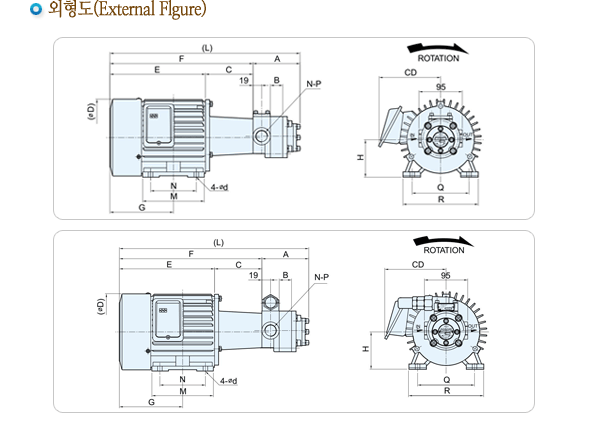

| Motor |
출력 |
C |
D |
E |
F |
G |
L |
d |
M |
N |
Q |
R |
CD |
H |
| 400W |
104 |
146 |
170 |
274 |
113 |
F+A |
7 |
114 |
90 |
112 |
144 |
125 |
78 |
| 750W |
104 |
168 |
208.5 |
312.5 |
138.5 |
F+A |
10 |
135 |
100 |
125 |
165 |
135 |
82 |
| 1500W |
85.5 |
185 |
239 |
324.5 |
158 |
F+A |
10 |
156 |
125 |
140 |
172 |
140 |
92 |
|
|
| |
| TYPE |
A |
B |
N-P |
|
TYPE |
A |
B |
N-P |
| HATP-203HA(VB) |
81 |
5 |
2-1/2 |
HATP-210HA(VB) |
93 |
17 |
2-3/4 |
| HATP-204HA(VB) |
83 |
7 |
2-1/2 |
HATP-212HA(VB) |
96 |
20 |
2-3/4 |
| HATP-206HA(VB) |
86 |
10 |
2-1/2 |
HATP-216HA(VB) |
103 |
27 |
2-3/4 |
| HATP-208HA(VB) |
90 |
14 |
2-1/2 |
HATP-220HA(VB) |
109 |
33 |
2-3/4 |
|
|
| |
 |
| TYPE |
50Hz 4P(1500rpm) |
60Hz 4P(1800rpm) |
Discharge
(ℓ/min) |
Motor Max.Pressure(kg/㎠) |
Discharge
(ℓ/min) |
Motor Max.Pressure(kg/㎠) |
| 400W |
750W |
1500W |
400W |
750W |
1500W |
| HATP-203HA(VB) |
4.5 |
30.0 |
30.0 |
30.0 |
5.4 |
26.0 |
30.0 |
30.0 |
| HATP-204HA(VB) |
6.3 |
21.5 |
30.0 |
30.0 |
7.5 |
16.0 |
30.0 |
30.0 |
| HATP-206HA(VB) |
9.0 |
10.5 |
25.0 |
25.0 |
10.8 |
7.0 |
23.5 |
25.0 |
| HATP-208HA(VB) |
12.6 |
7.0 |
23.0 |
25.0 |
15.1 |
4.0 |
17.5 |
25.0 |
| HATP-210HA(VB) |
15.3 |
4.5 |
15.5 |
25.0 |
18.3 |
2.5 |
11.5 |
25.0 |
| HATP-212HA(VB) |
18.0 |
3.5 |
13.5 |
20.0 |
21.6 |
- |
8.5 |
20.0 |
| HATP-216HA(VB) |
24.3 |
2.0 |
8.5 |
20.0 |
29.1 |
- |
5.5 |
19.5 |
| HATP-220HA(VB) |
29.7 |
- |
5.5 |
15.5 |
35.6 |
- |
3.5 |
14.0 |
|
|
| |
| |
